SecureNAS® CX-40KHD

ORDER NOW
DATA SHEET (PDF)
CX-40KHD-front-b

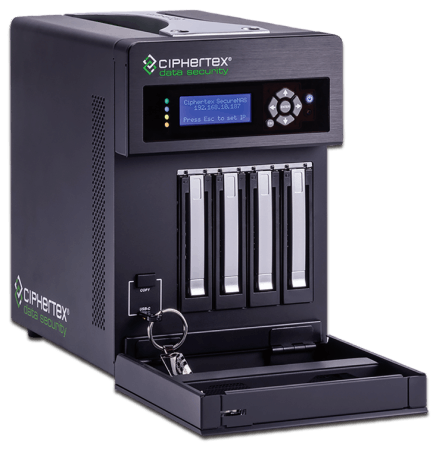

CX-40KHD-open-b
CX-40KHD-back-b
CX-40KHD-back-angled-b

Features

  • High-capacity storage in a rugged enclosure from 16TB to 88TB
  • Ciphertex® SecureNAS® Encryption is FIPS 140-2 Level 3 Certified
  • Supports (4) hot-swappable HDD’s and (2) internal SSDs for fail-safe OS hosting redundancy
  • Intel® Xeon® processor D-1518 4-Core with optional 8 and 16-Core expandability featuring the latest 14nm energy-efficient SoC
  • (4) DDR4 memory modules, ranging from 32GB-128GB RAM
  • Built-in 8 Intel® AES-NI with AES-256 bit encryption for bulk encryption/decryption, authentication, and random number generation
  • Built-in M.2 SATA 6GB/s slot for ultra-high-speed performance maximizing SSD caching
  • (2) Ciphertex Protect® Hardware Encryption Keys for secure data management
  • Smart cooling fan automatically adjust its speed, delivering the quietest possible operation under various conditions
  • (2) PCIe slots support multiple network interface cards for cross-communication across different networks, graphics support, and various applications including file sharing, backup, disaster recovery, iSCSI, virtualization & business applications
  • Lockable metal security door to prevent theft and data loss by human error
  • Certified by a US military-approved Environmental Testing Lab
  • Complimentary 2 x 10G Fiber
  • Custom tailored security options and pre-installed, license-free operating system
  • USB blocker for enhanced security
  • Compact footprint for space efficiency
  • Instant Secure Erase
  • High-speed duplicate and transfer between local and remote servers with Rsync
  • Supporting ZFS resiliency – ZFS RAIDZ levels: Mirror, Stripe Set, RAIDZ1 and RAIDZ2
  • 5-year warranty (3-year standard)
GET A QUOTE
ASK AN EXPERT
Contact a CIPHERTEX® sales representative for pricing and additional information on custom configurations, expansions and accessories.
CAPACITY PART NUMBER PRICE
16TB SNCX-40KHD-4C-32G-16TB Call for price
24TB SNCX-40KHD-4C-32G-24TB Call for price
40TB SNCX-40KHD-4C-32G-40TB Call for price
48TB SNCX-40KHD-4C-32G-48TB Call for price

Hardware Specs

  • DRIVE BAY
    Up to 4 hot swappable 3.5” HDDs and 2 internal SSDs – Up to 88TB RAW storage capacity
  • HIGH PERFORMANCE CPU
    Intel® Xeon® Processor D-1518 Socket FCBGA 1667 supported CPU TDP support 35W
  • CORES/CACHE
    4 Cores (upgradable to 8 and 16 Cores), 8 Threads /6MB Cache
  • MEMORY CAPACITY
    Up to 128GB Unbuffered ECC/non- ECC UDIMM, DDR4- 2133MHz, in 4 DIMM slots
  • MEMORY TYPE
    2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
  • DIMM SIZES
    4GB, 8GB, 16GB, 32GB
  • MEMORY VOLTAGE
    1.2V
  • ERROR DETECTION
    Corrects single-bit errors Detects double-bit errors (using ECC memory)
  • M.2 EXPANSION
    M.2 Interface: 1 SATA/PCI-E 3.0 x4
  • SAS2
    Broadcom 2116 SW controller for 16 SATA3 (6Gpbs) ports; SAS2 and SATA3
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM- over-LAN support
  • NETWORK CONTROLLERS
    Dual LAN with 10G SFP+ from D-1500 SoC; Dual LAN with 1GbE w/ Intel® I210
  • GRAPHICS
    Aspeed AST2400 BMC
  • LED INDICATORS
    Status/Power, USB, LAN
  • PUSH BUTTONS
    Power, Reset, Copy
  • TEMPERATURE
  • SMART FAN
    1 x 12cm (12V DC)
  • WEIGHT
    12.8 lbs (w/o drives)
  • SIZE
    Height: 9.8” (243 mm) Width: 7.0” (178 mm) Depth: 9.5” (241 mm)
Proudly-Made-in-the-USA-Button-White-png
TAALogo
Software
CAPACITY PART NUMBER PRICE
HDD SNWD04TB
SNWD08TB
SNWD10TB
SNWD12TB
SNWD14TB
SNWD16TB
SNWD18TB
SNWD20TB
SNWD22TB
4TB CAPACITY HD DRIVE
8TB CAPACITY HD DRIVE
10TB CAPACITY HD DRIVE
12TB CAPACITY HD DRIVE
14TB CAPACITY HD DRIVE
16TB CAPACITY HD DRIVE
18TB CAPACITY HD DRIVE
20TB CAPACITY HD DRIVE
22TB CAPACITY HD DRIVE
Network Adapter 00510G004
00510G0014
00510G0040
00510G100
SN4PCI
10G COPPER NETWORK ADAPTER CARD 2 PORTS
10G COPPER NETWORK ADAPTER CARD 4 PORTS
40G FIBER NETWORK ADAPTER CARD
100G FIBER NETWORK ADAPTER CARD
4 PORT USB 3.0 PCIe EXPANSION CARD
SFT+ Transceiver 00510G011 10GBASE-SR SFP+ TRANSCEIVER
Encryption Key SNCPKEY CIPHERTEX-PROTECT ENCRYPTION KEY
Door Lock Key SNKEY SECURENAS DOOR LOCK KEY
Copper Network Cable SNNC6A COPPER NETWORK CABLE
Quick Link Cable SNQL QUICKLINK CABLE
Fiber Network Cable N.A. FIBER NETWORK CABLE
Transport Case N.A.
N.A.
N.A.
N.A. 		SECURENAS CX-40KHD/SD HARD TRANSPORT CASE
SECURENAS CX-80KHD/SD HARD TRANSPORT CASE
SECURENAS CX-120 HARD TRANSPORT CASE
SECURENAS CX-160KHD/SD HARD TRANSPORT CASE
01

SSD

2 redundant SSDs for caching and hosting the Ciphertex® OS.
02

Memory DDR

32-128 DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.
03

Memory DDR

32-128 DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.
04

App. Performance

Two PCIe slots allow for 5GbE/10GbE/25GbE/40GbE NICs, M.2 SSDs, or graphics cards to increase application performance.
05

Flexible Solutions

Scalable storage supporting virtual machines, containerized apps, centralized storage, backup, sharing, and disaster recovery.
06

Secure Data

Maintenance-free, License-free and Hassle-free

Expansion Interface Cards

The additional expansion slots give you the ability to customize your NAS to meet your business’s requirements. These are five most popular upgrades:
  • 10GB Network Card / Dual Port RJ45
  • 40GB Network Card / QSFP
  • USB 3.0 PCIE Card / 4 Port
  • 10GB Network Card / 4 Port RJ45
  • 100GB Network Card / Dual Port QSFP28

Transport Case

  • Airtight, Watertight, Rustproof,
  • Shockproof, And Crush Proof
  • Impervious to the Rigors of Mother Nature
  • Chemical Resistant and Corrosion Proof
  • Customizable Durable Foam That Lasts 15 Years
  • Automatic Pressure Equalization Valve
  • O-Ring Seal
  • Stainless Steel Hasp Protectors
  • Wheels with Stainless Steel Bearings
  • Retractable Extension Handle and Fold Down Handles
  • Pockets for Accessories and cables
  • Optional Humidity Indicator Plug

Ciphertex® Delivers Peace of Mind with Every SecureNAS®

Ciphertex® is proud to lead the Data Security Industry by offering up to a 5-Year Warranty on all models of our SecureNAS® server product line, starting with a standard 3-Year Warranty.
Parts and factory labor are fully covered, along with unlimited technical support and return ground shipping from our facility. Field service warranties at various response levels are optionally available.
